Roll-feed Baby Granulators
video

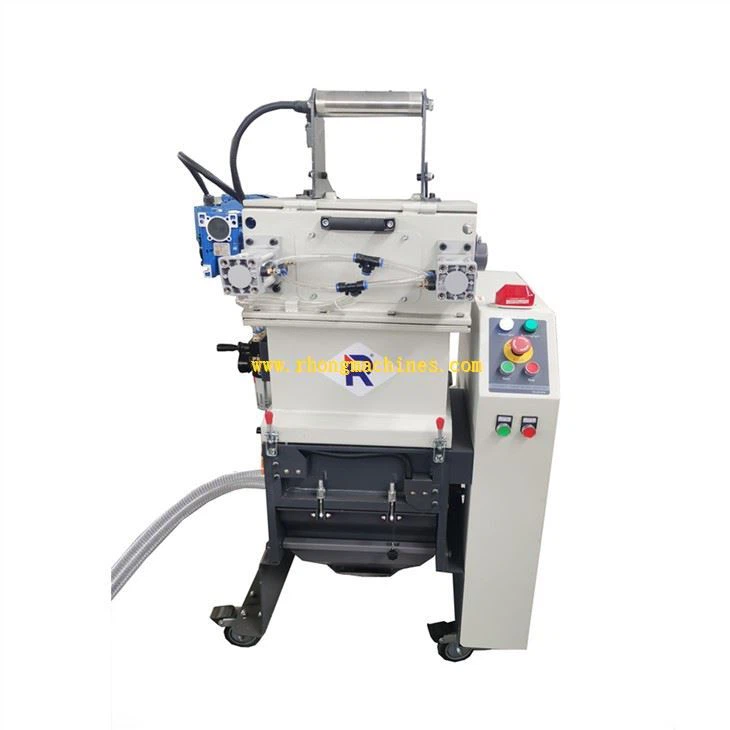

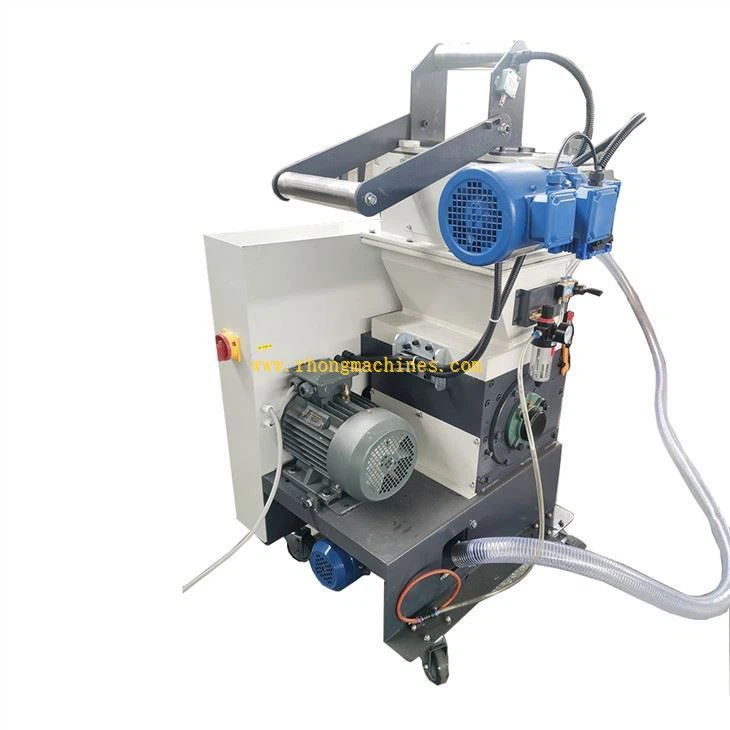

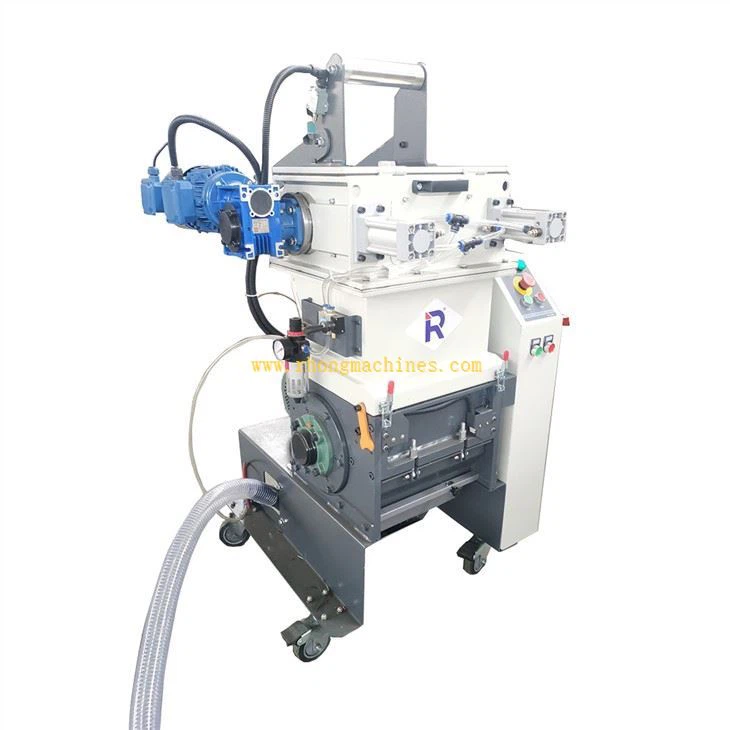

Roll-feed Baby Granulators

Model No.:RG-21RX Application:Roll-feed Baby Granulators are applicable for granulating and recycling plastic films. After pressed toughly by the material feeding rollers, films are pushed and cut into granules for reusing
Brand: RHONG
Place of Origin: china

Certificate: CE
HS Code: 8479820090 Video link:https://youtu.be/QeLTTtd5soU

Ningbo Beilun Rhong Machinery Manufacturing Co. Ltd
Send Inquiry

Description

Technical Parameters

Ningbo Beilun Rhong Machinery Manufacturing Co.,Ltd. is one of the most reliable manufacturers and suppliers of roll-feed baby granulators in China, featured by quality products and good price. Please rest assured to wholesale customized roll-feed baby granulators made in China here from our factory.




Roll-feed Baby Granulators Product Description

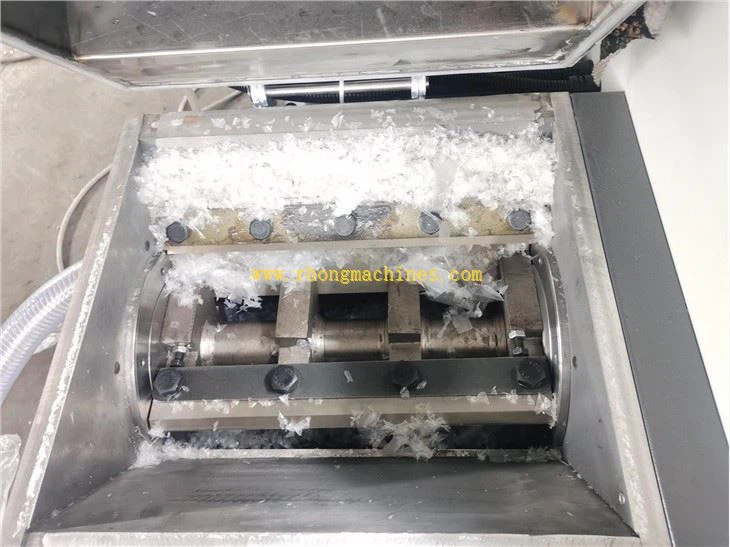

Roll-feed Baby Granulators  are applicable for granulating and recycling plastic films. After pressed toughly by the material feeding rollers, films are pushed and cut into granules for reusing


This kind of Professional film plastic  granulators,Online edge trim crushers can feed material automatically into chamber box and conveying the regrind material back to production line.


If you need to choose higher output,please link another page to check large size crushers:Film granulators


Roll-feed Baby Granulators  good features:

  1. Applicable to process extruded waste films, highly operation safety and compact design.

  2. Integrated material scrolling devices into one unit can facilitate the granulating work by easily scrolling the material into cutting chamber.

  3. Scrolling motor has a frequency convertor to satisfy different film cutting capacity.

  4. Equipped with cyclone dust collector, which can effectively separate regrinds and air and is also convenient for regrinds collection.


Hot Tags: roll-feed baby granulators, China, manufacturers, suppliers, factory, customized, wholesale, price, made in China, Pipes Granulators, Thermoforming Granulators, Pipe Profile Granulator, Pipe and Profile Granulator Rhong Machines, Granulator For Plastic Recycling, Best Price Film Granulator for Sale

Roll-feed Baby Granulators Specifications:

Model
RG-2136RX
Main Motor PowerKW2.2(6grade level)
Reducer Motor PowerKW0.55
Blower PowerKW0.37
Rotor speedRPM290
Rotating bladesPCS3
Fixed bladesPCS2
Screen DiaMM8
Cutting chamberMM315X360
Feeding mouthMM64X210
OutputKG/HR150-250
NoiseDB(A)60-75
Blower conveying system
Take out screen box by hand
O
Motor lifting device for hopper
Dust collector
O
WeightKGS260
External size(LXWXH)MM894X895X1389

Online edge trim crushers drawing as following:
