Film Granulators

Ningbo Beilun Rhong Machinery Manufacturing Co.,Ltd. is one of the most reliable manufacturers and suppliers of film granulators in China, featured by quality products and good price. Please rest assured to wholesale customized film granulators made in China here from our factory.





Key Components

To safely crush fishing line/fluffy or puffy plastics (such as PE/PP films, bags, and foam), prioritize the following machine features:

Solid/with4-Row Special Film Rotor Increases Performance:

1)Avoid open-wing film rotors. Choose a heavy, solid V-type or scissor-cut rotor geometry that forces continuous shearing.                                                            2)Heavy Duty Blade Alloys: Equip the machine with wear-resistant blade materials like 6CrW2Si,SKD-11, or carbide-tipped steel

screen size

1)To increase crushing capacity,better to choose bigger screen size,such as 25MM,20MM,16,14MM etc.

2)For subsequent extrusion and pelletizing lines, a screen size between 8mm and 12mm at the bottom of the cutting chamber is recommended to keep output uniform

Materials Processed

Plastic film granulators are engineered to process polyolefins and highly flexible plastics into premium regrind

1)Polyethylene (LDPE/LLDPE/HDPE), Polypropylene (PP), Polyvinyl Chloride (PVC), Polystyrene (PS), and PET                  2)

Polyethylene Films (LDPE, LLDPE, HDPE): Shrink wraps, stretch films, carrier bags, and industrial liners.

Polypropylene Films (PP & BOPP):

Snack food packaging, clear flower packaging, and woven bags.

Agricultural Films: Greenhouse covers, silage wraps, and mulching films.

Complex Multi-Layer Films: Laminated or metallized barrier films (e.g., PET/PE layers) used in advanced food preservation packaging



How to throw plastic waste material into cutting chamber

A central plastic film granulator is specifically designed to crush fluffy or puffy plastics (such as PE/PP films, bags, and foam) and typically utilizes a conveyor belt or manual feeding to move waste into the cutting chamber

Key Characteristics:
• Target Material: Best for low-density, high-volume fluffy plastics.
• Feeding System: Uses conveyor belts for continuous, automated, and safe feeding.
• Manual Option: Allows manual feeding for smaller batches or oversized scrap.
• Cutting Design: Features specialized rotor knives to grab and slice elastic films easily

Professtional film granulators RG-3640K and RG-4060K series,are mainly used to directly granulate different kinds of  whole/skeleton sheet,edge trim in the thermoforming industry

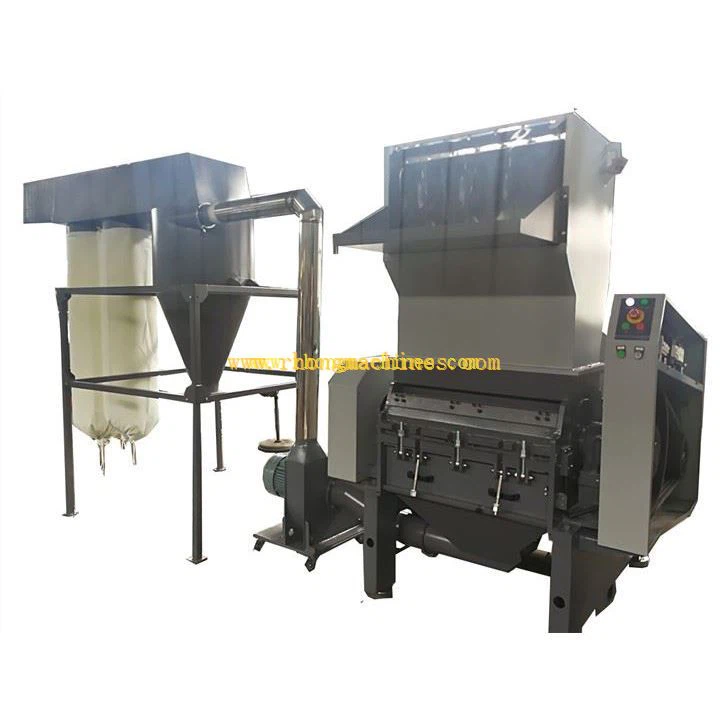

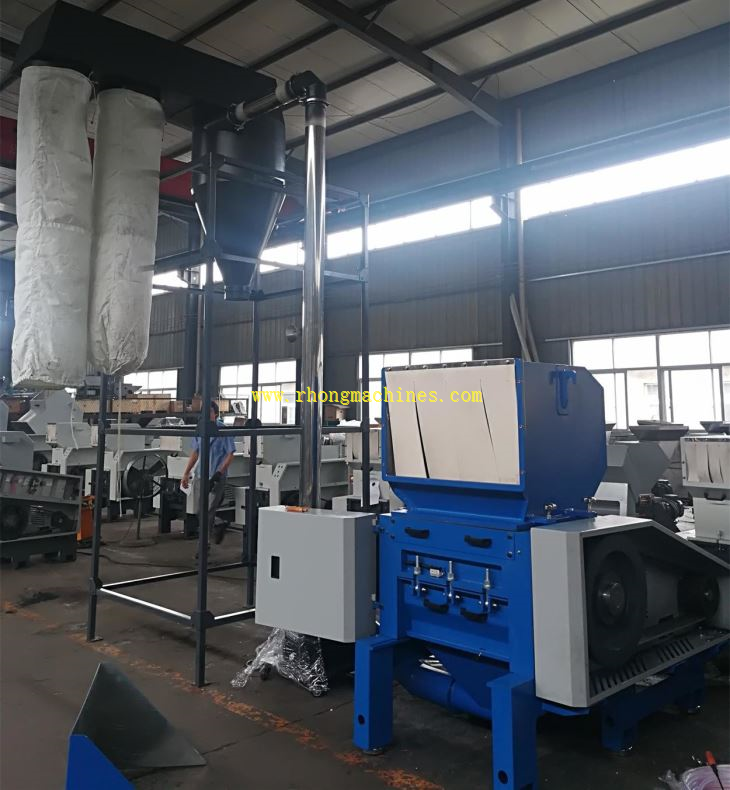

The optional Suction Conveying and Cyclone Dust Separator System bring recycling efficinecy into full play for film granulators

Thermoforming crushers are  characterized with compact structure, atractive appearance, convenient operation, optimized rotation knife to achieve lowest energy consumption and higher cutting efficiency.

RHONG Film grinders can handle in-line skeleton waste,but also can get more from your raw materials whilst doing less manual work.

If you need to centralized film granulators with two feeding hopper,pls check another page:Rolled film granulators

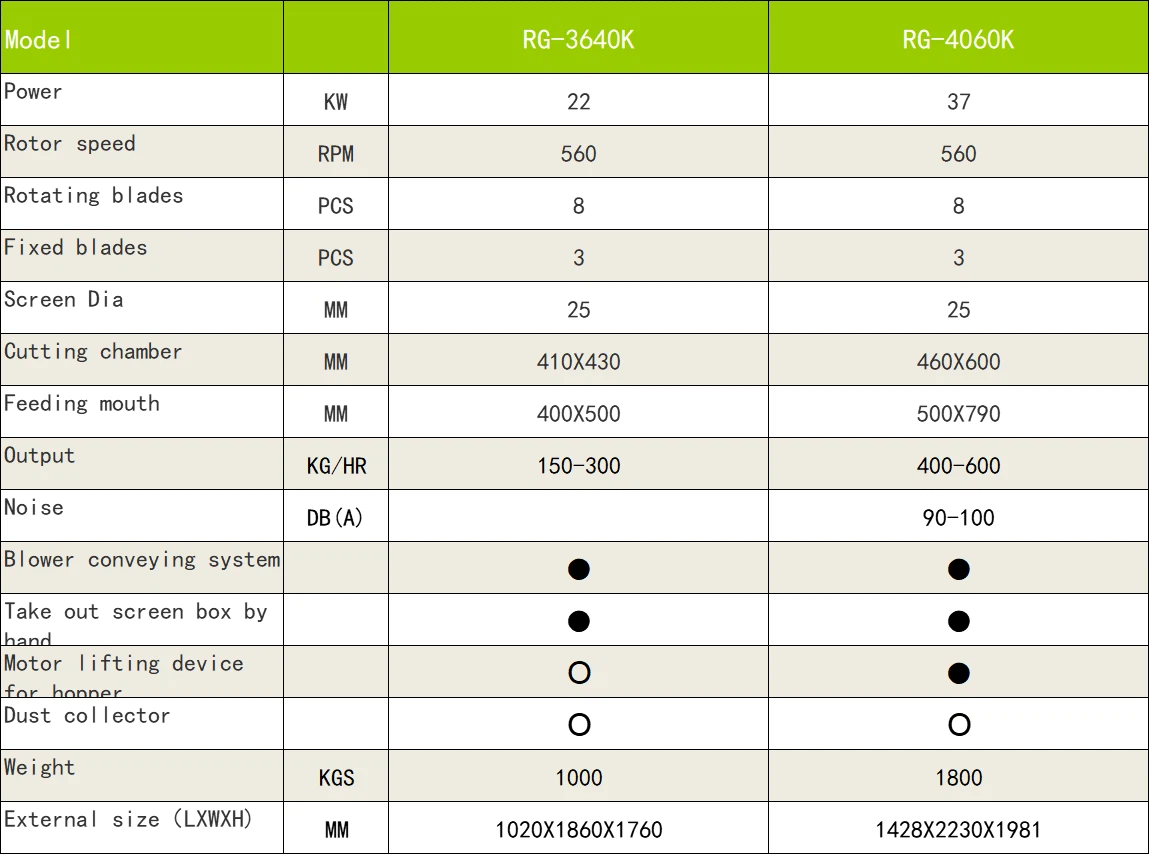

 RHONG RG-3640K and RG-4060K Custom Granulators Good Features:

>Outside bearing seat design,in order to avoid the dust entering into the bearing ,long time using life.

>Separation design for machine body,convenient for replacing the screen blades.

>Overloading protector for motor and interlock device,double protection for the safety of personnel and motor.

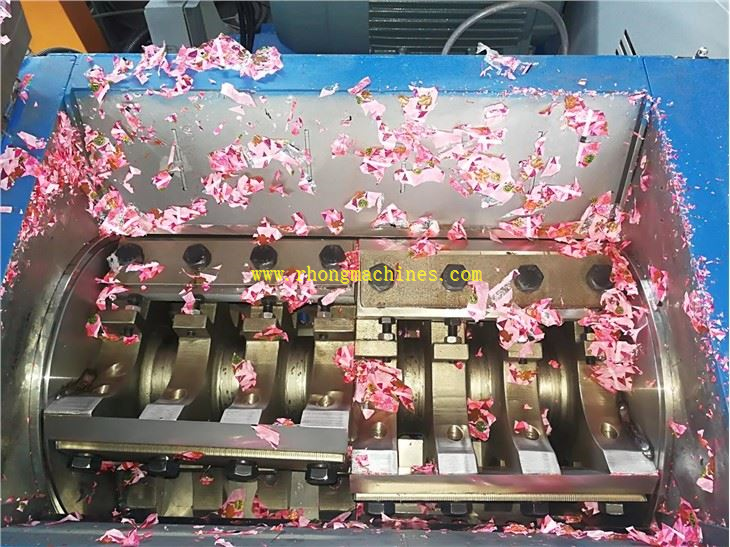

>Special film rotor with 4row,to increase Cutting force and crushing capacity

>Knives gap adjustment is available

Ningbo Beilun Rhong Machinery Manufacturing Co, Ltd. R brand plastic films granulators  and crushers  have a wide selection at great prices to help you get creative.
