3-in-1 Dehumidifying Plastic Granules Dryer
The Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine

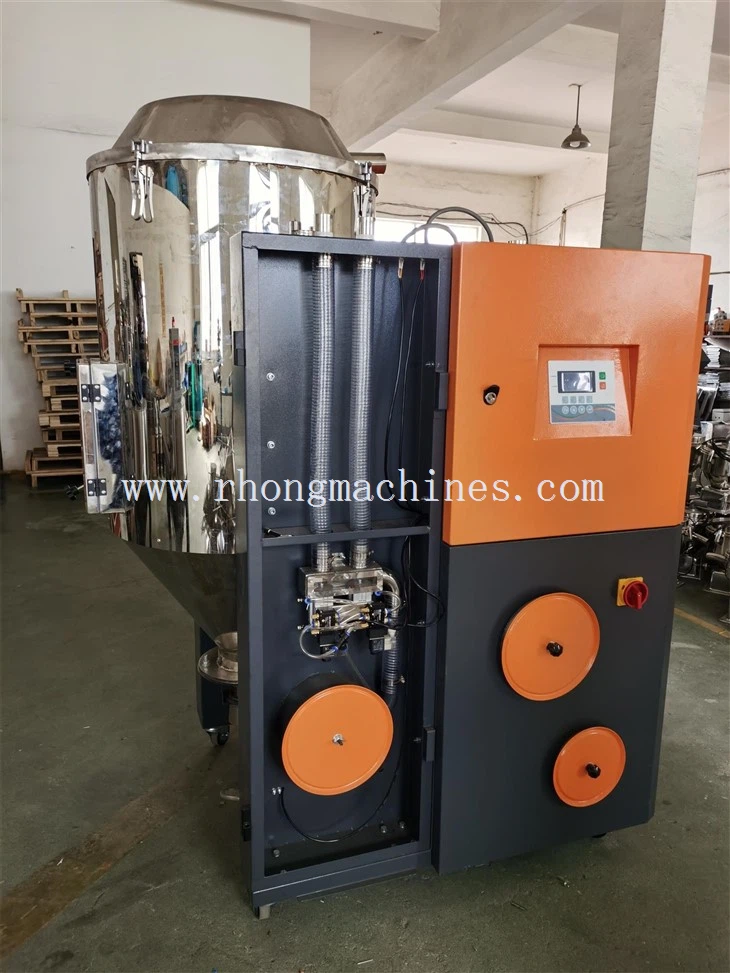

The Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine Pet Crystallizer Plastic Raw Material Used Industrial Dehumidifier Dryer with Loader
The Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine

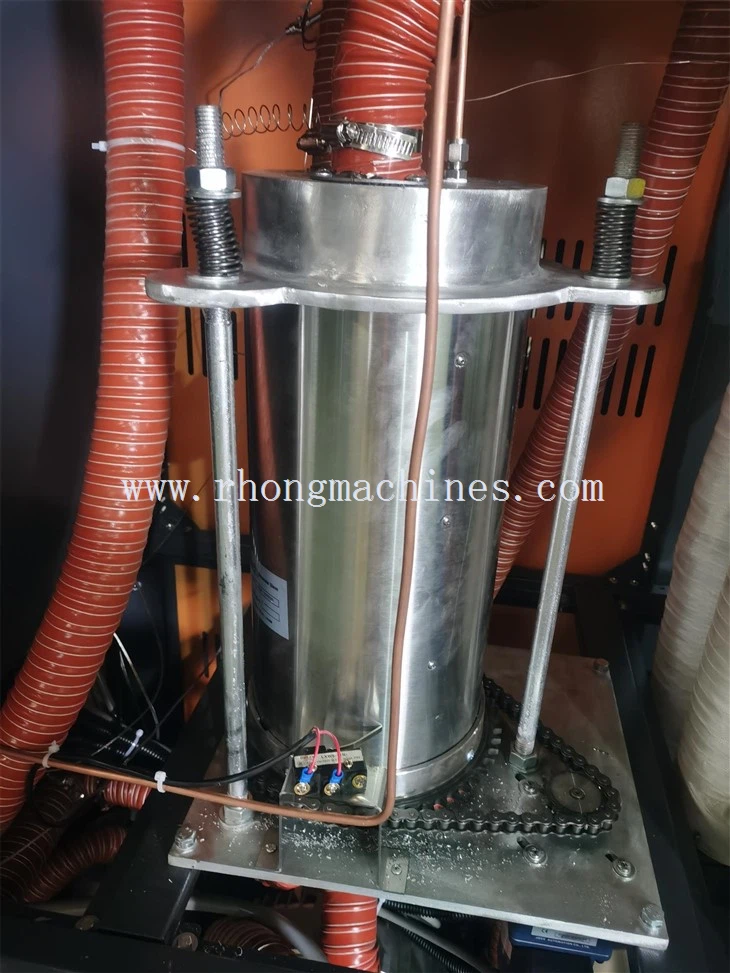

honeycomb of All in One Compact Dryers
The Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine
Application:Honeycomb Desiccant Rotor dehumidifier dryer 3 in 1 are mainly used to dry hygroscopic engineering plastics.
Brand: RHONG
Place of Origin: china
Certificate: CE
HS Code:8419399090 Video show:https://youtu.be/Qfv5A7G71Qw
Ningbo Beilun Rhong Machinery Manufacturing Co.,Ltd.
Description
Technical Parameters
Ningbo Beilun Rhong Machinery Manufacturing Co.,Ltd. is one of the most reliable manufacturers and suppliers of the honeycomb 3 in 1 automatic desiccant rotor drying machine in China, featured by quality products and good price. Please rest assured to wholesale customized the honeycomb 3 in 1 automatic desiccant rotor drying machine made in China here from our factory.
The Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine Media Referance:
This drying machines are the perfect solution for high demands of automation systems and limited working spaces. Its compact design integrates the function of dehumidifying, drying, and two-stage conveying into one unit, making it an efficient and space-saving solution.
It adapts PLC controller with the superior features on easy operation, stable function, and low power consumption. The drying air flow ranges from 30-700 m3/hr. In addition, we design optic Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine for optic products to satisfy with customers' various.
Characteristics
A honeycomb-rotor is used in this series to offer effective drying.
molecular sieve dessciant Rotor as below：
Electrical box
Computer panel：
Drying & Dehumidifying 3 in 1 Optional accessory

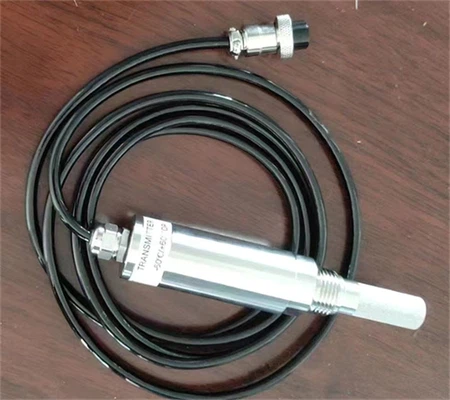

Dew point probe

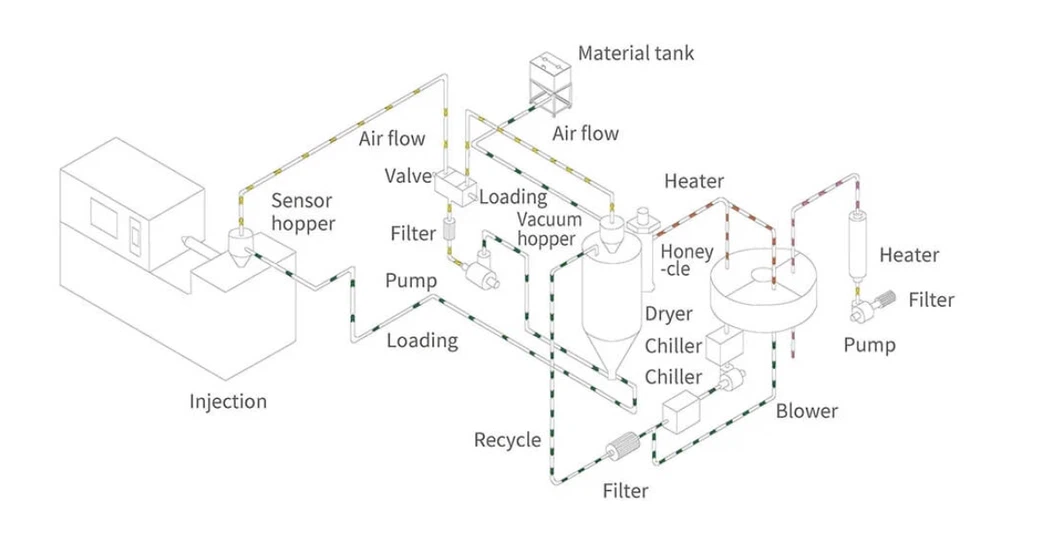

Working principle

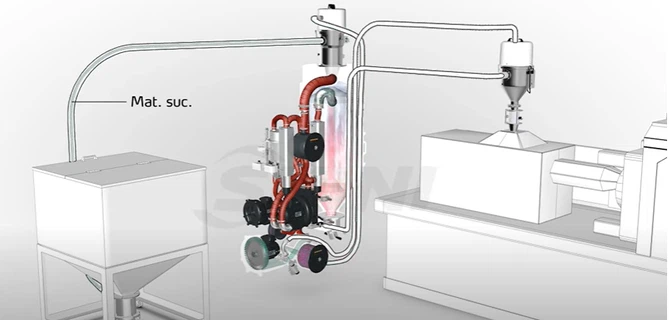

This machine The Honeycomb 3 in 1 Automatic Desiccant Rotor Drying Machine (Standard Type) integrates three functions: dehumidification, drying, and feeding.
Dehumidifying and drying : damp and hot air from dry material barrel is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air.Two streams of air act on the runner at the same time, and with the rotation of the runner, the water in the air is continuously adsorbed and desorbed by the regenerated air to form a stable low dew point air, which is heated to the drying temperature of the plastic and blown into the drying barrel to form a closed cycle and dry the raw materials.
Suction(conveying ): material is absorbed into barrel from storage barrel or other storage containers. When the magnetic reed switch detects no material, suction motor runs to produce vacuum inside vacuum hopper. Raw material in storage barrels is absorbed into suction hopper due to air pressure difference. When material suction completes, motor stops. Raw materials drop into drying hopper barrel due to gravity. The dried raw material after dried is taken out to the hopper with photo-sensor installed on molding machine or other hopper from drying hopper barrel.

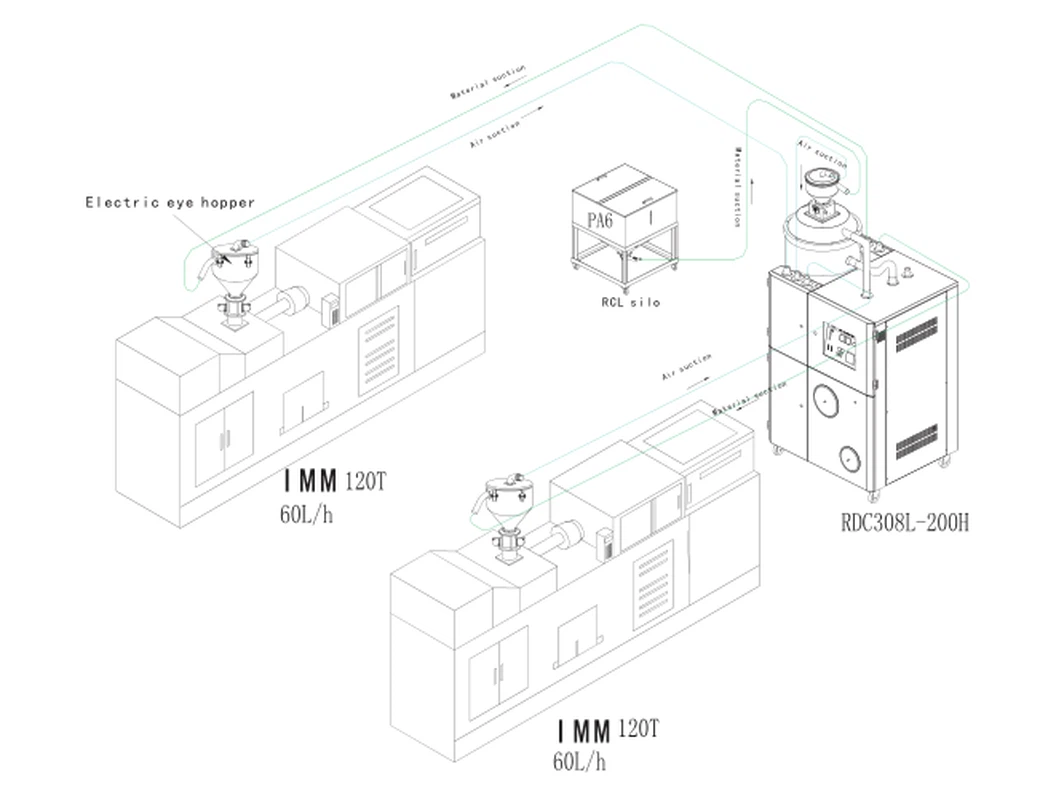

RDC 3-in-1 Dehumidifying Plastic Granules Dryer for two injection mold machines

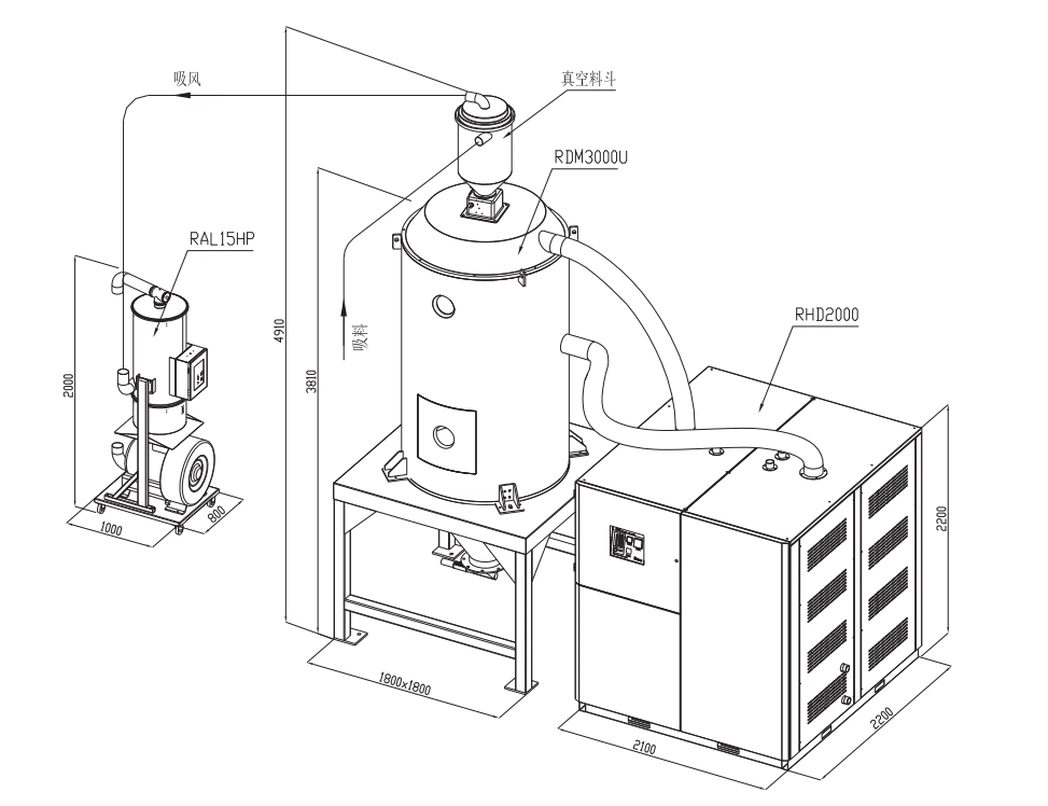

Bigger size :RDM-3000L/2000H+RAL15HP
(Dehumidifying dryers combine dehumidifying and drying systems into a single unit,then equipped with extra auto loader
(conveying system, work together)
