Water Type Mold Temperature Controller

Ningbo Beilun Rhong Machinery Manufacturing Co.,Ltd. is one of the most reliable manufacturers and suppliers of water type mold temperature controller in China, featured by quality products and good price. Please rest assured to wholesale customized water type mold temperature controller made in China here from our factory.

Water Type Mold Temperature Controller Product Description

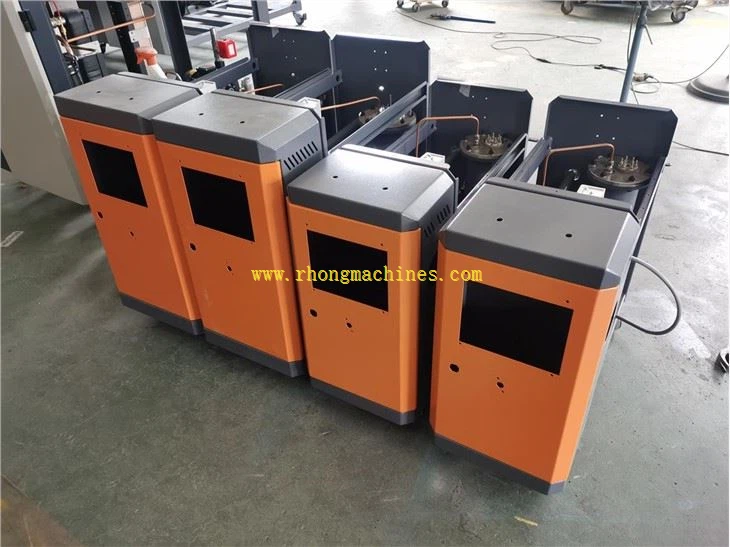

Water type mold temperature controller RTC-W adopts heat-exchanging principle,use water as the medium that saves production cost and ensures good working environment,choose water medium to keep the mould at a constant temperature during molding, which make sure top quality for molding.

The optimized design ensures the heating temperature up to 120.

How to Select a Mold Temperature Controller

In injection molding, we usually control the mold at a fixed temperature by making coolant continuously flow through the mold. If the coolant flow is not enough, or the coolant temperature is not as expected, the mold temperature won’t be able to keep at the designated temperature. The manufacturers of mold temperature controllers calculate the appropriate mold temperature controller specifications according to the size of the mold and the part. However, it can be a challenge for engineers and analysts using the simulation software to evaluate the performance of a mold temperature controller.

1)Users can apply two types of boundary conditions for cooling channels: flow rate and pressure.

2）Apart from the pressure difference, flow resistance  is another factor that will affect flow. Flow resistance varies with some conditions, such as cooling channel diameters, channel length, channel wall smoothness, coolant properties, and flow rate.

3）The  function of a mold temperature controller is to push the coolant to flow and stabilize the coolant temperature. The main function of the pump in the mold temperature controller is to push the coolant to flow. When the pump pressure rises, the flow rate decreases; when the flow rate increases, the pump pressure decreases. We can see the maximum flow rate and maximum pressure values on the mold temperature controller specification, but we have to note that the two conditions never exist simultaneously.

4）Users can obtain the flow rate and pressure difference of every cooling channel through cooling channel analysis. The total flow rate of the cooling channels is the flow the mold temperature controller has to provide. The maximum pressure in the cooling channel is the minimum pressure the mold temperature controller has to provide.

Water heater Good Features:

1.P.I.D temperature control with a user-friendly interface,with high accuracy in order to precisely control water temperature with variation of 1^oC

2.Equipped with horizontal pump,running in smooth and steady,stable flow with long working life.

3.cylindrical tube design,pressurization and explosion-proof.

4.Automatic alarming function
