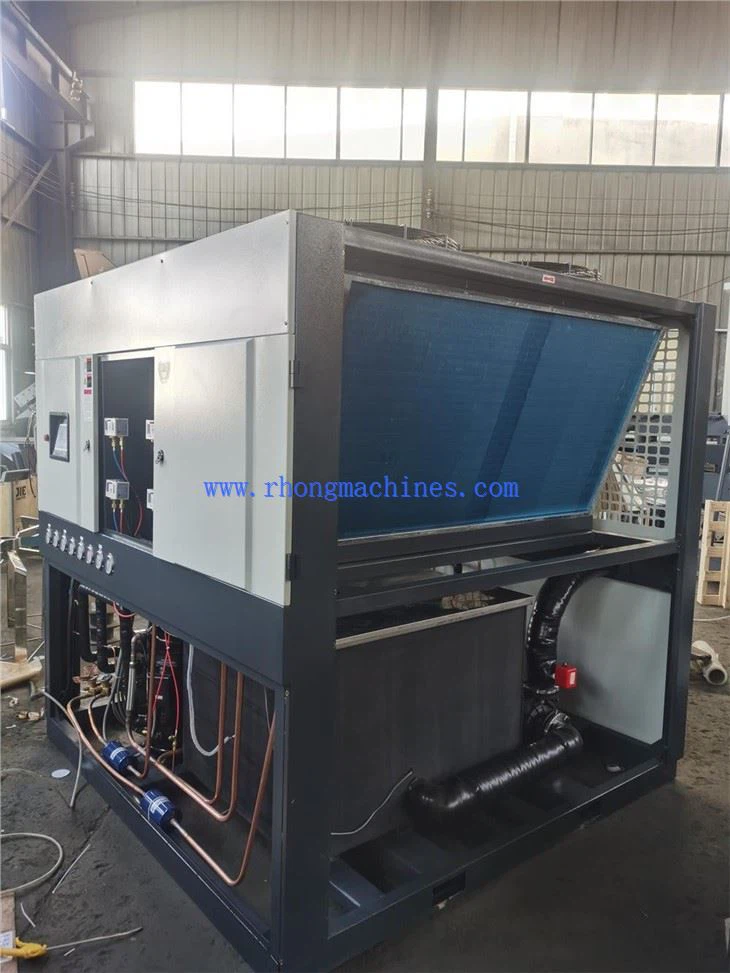

Aircooled Chiller Rhong Brand
Brand: RHONG
Place of Origin: china
Certificate: CE
HS Code:8418699090
Video link:https://www.youtube.com/watch?v=iIzNw8_L2x0&t=16s
Ningbo Beilun Rhong Machinery Manufacturing Co. Ltd
Description
Technical Parameters
Ningbo Beilun Rhong Machinery Manufacturing Co.,Ltd. is one of the most reliable manufacturers and suppliers of aircooled chiller rhong brand in China, featured by quality products and good price. Please rest assured to wholesale customized aircooled chiller rhong brand made in China here from our factory.
Air-cooled scroll compressor chiller Rhong Brand Media Browser
Air cooled chiller Rhong Brand Product Description
RCM-40A series Aircooled chiller Rhong brand are capable of controlling precisely the mold temperature in plastic molding process as so to shorten molding cycle and speed product formalization.
The principle of heat exchange is adopted for cooling. They can achieve rapid cooling, stable temperature controlling, and will be little effected by the surounding factors.
Therefore Scroll Type Air-cooled Industrial Chillers are necessary good equipments in modern industry.
Rhong Machinery Air cooled Industrial chiller good features:
1. Cooling temperature range 5-35 ℃.
2. High-capacity tube-in-shell evaporator and Tube-fin double condensers is our standard design for
RCM-40A
3.Stainless steel warm-keeping water tank.
4. R22 refrigerant to be used for efficient cooling.
5. R407 environment-friendly refrigerant is optional to use.
6.Engineered high efficiency heat exchanger for maximum energy savings
7.Complete control panel with corded electrical connection, starters & safety switches
8.Complete refrigeration circuit
9.Efficient scroll compressor
10.Sleek compact design
11.with bypass valve
12.Factory run tested and fully charged with refrigerant
Product Line Overview
| Model Series | Key Design Variant | Main Application Environment | ||
| RCM-A | Standard Air-Cooled Scroll Unit | Direct process cooling via an internal tank | ||
| RCM-AX | Plate Heat Exchanger Design | Direct process cooling via an internal tank | ||
| To help you find the right model, could you share the cooling capacity (in kW or Tons)you need, your target water outlet temperature, or the specific machinery you are planning to cool? | ||||
Aircooled Chiller Rhong Brand Some Parts Information：

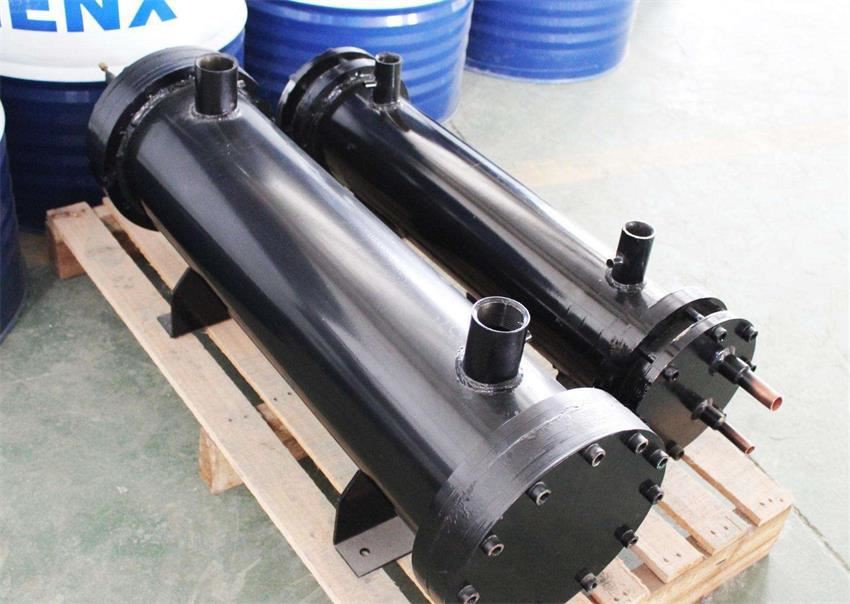

Tube in shell type evaporator
Control box with main elctrical parts information
Filter brand
Expansion valve Brand
Scroll type Compressor brand
Comparison: Scroll vs. Screw Compressors
When deciding on an air-cooled chiller platform, capacity is the main differentiator:
To help pinpoint the best option, could you share the cooling capacity (tons or kW) your application requires, the desired water outlet temperature, and whether this is for an industrial process?
Hot Tags: aircooled chiller rhong brand, China, manufacturers, suppliers, factory, customized, wholesale, price, made in China, Rhong Scroll chillers with plate type evaparator, Industrial Outdoor Central Chillers, Portable Air Cooled Chillers, Water Cooled Industrial Chiller, Outdoor Air Cooled Chillers, Scroll chillers
Scroll type Air Chiller Specification Table:
|
RCM-3A |
RCM-4A |
RCM-5A |
RCM-8A |
RCM-10A |
RCM-12.5A |
RCM-15A |
RCM-20A |
RCM-25A |
RCM-30A |
||
|
Chilling capacity |
kw |
7.5 |
10 |
13.5 |
20 |
25.5 |
31.5 |
38.5 |
50 |
62.5 |
77.5 |
|
Kcal/hr |
6500 |
9000 |
11500 |
16500 |
22000 |
27000 |
33000 |
44000 |
54000 |
66500 |
|
|
Compressor output power |
HP |
3 |
4 |
5 |
8 |
10 |
12.5 |
15 |
20 |
25 |
30 |
|
Refrigerant |
- |
R22 R407C |
|||||||||
|
Evaporator |
- |
Plate type |
|||||||||
|
Blower power |
Kw |
0.25 |
0.19*2 |
0.25*2 |
0.25*4 |
0.42*6 |
|||||
|
Tank capacity |
L |
50 |
65 |
110 |
150 |
270 |
350 |
400 |
|||
|
Pumping Power |
Kw |
0.75 |
1.1 |
2.2 |
2.2 |
||||||
|
Pump Max flowrate |
L/min |
80 |
150 |
250 |
400 |
||||||
|
Pump Max pressure |
kg/cm2 |
2.0 |
|||||||||
|
Pipe size outlet |
lnch |
1"*1 |
1½" |
2" |
2½" |
||||||
|
Pipe size intlet |
lnch |
1"*1 |
1½" |
2" |
2½" |
||||||
|
Drainage outlet |
lnch |
1/2" |
|||||||||
|
Overflow Port |
lnch |
1/2" |
|||||||||
|
Weight |
Kg |
120 |
140 |
180 |
220 |
280 |
350 |
400 |
450 |
550 |
600 |
|
Extemal size mm |
|||||||||||
|
L |
1090 |
1090 |
1250 |
1350 |
1350 |
1700 |
1700 |
1900 |
2150 |
2150 |
|
|
W |
760 |
760 |
760 |
860 |
96 |
1200 |
1200 |
1200 |
1480 |
1480 |
|
|
H |
1250 |
1250 |
1320 |
1560 |
1620 |
1750 |
1750 |
1750 |
1800 |
1800 |
|
